Datasheet values
| Item | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH |
|---|---|---|---|---|
| Battery capacity | 50 Ah | 100 Ah | 150 Ah | 200 Ah |
| Nominal battery energy | 2.4 kWh | 4.8 kWh | 7.2 kWh | 9.6 kWh |
| Max discharge current | 50 A | 100 A | 150 A | 200 A |
| Net weight | 35 kg | 68 kg | 95 kg | 108 kg |
| Dimension (H x W x D) | 442 x 480 x 88 mm | 680 x 495 x 185 mm | 680 x 495 x 185 mm | 680 x 495 x 185 mm |
| Operating temperature range | -20 to 50 C | -20 to 50 C | -20 to 50 C | -20 to 50 C |
| Life cycles | >6000 | >6000 | >6000 | >6000 |
| Nominal voltage | 48 Vdc | 48 Vdc | 48 Vdc | 48 Vdc |
| Communication | CAN / RS485 / dry contact | CAN / RS485 / dry contact | CAN / RS485 / dry contact | CAN / RS485 / dry contact |
| Warranty | 10 years | 10 years | 10 years | 10 years |
The family covers 2.4 kWh to 9.6 kWh per module with a cycle life over 6000 and a 10-year warranty on the module datasheet. Communication is CAN, RS485 or dry contact, so the modules integrate with the mainstream hybrid inverter brands' battery protocols at the level this class of equipment uses.

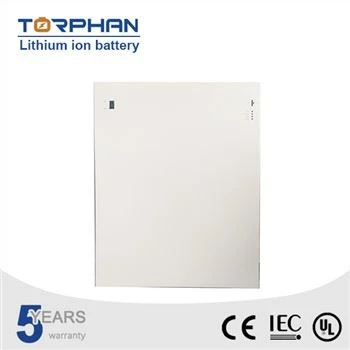

Why wall-mounting wins at this scale
Floor space in a garage, utility room or plant room is working space; wall space usually is not. The compact design is built for that reality: the largest module in the family is 185 mm deep, and the smallest — the 2.4 kWh unit — is only 88 mm deep, thinner than most inverter cabinets it hangs beside. Modular expansion means a project can start with one module for backup duty and add modules as the solar array or the load grows, with BMS protection in each module and a breaker embedded in the system.
Applications and behaviour
The module family is built for off-grid and hybrid systems, delivering twice the power of a lead-acid battery at the same rating while maintaining high energy capacity, at about 40% of the weight of a comparable lead-acid battery. Lithium iron phosphate chemistry removes the explosion and combustion risk associated with high-impact, overcharge or short-circuit events in less stable chemistries — the safety basis for mounting storage on a home wall.
Ordering
State the module size or the total kWh you need, the inverter brand and model, and whether the system is off-grid or hybrid. The quote confirms module count, communication pairing and mounting. Minimum order quantities and lead times are confirmed on quotation.
